An off-road legend just got an upgrade.

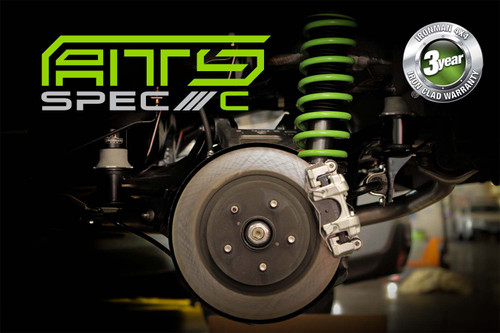

The All Terrain Suspension (ATS) suited for the Subaru Outback is a complete suspension system with performance coils for greater stability and improved driving dynamics without compromising safety and comfort. Engineered with extended travel twin-tube gas struts, derived from our military-grade suspension, ATS provides enhanced durability and reliability in both on- and off-road environments. And with a two-inch lift, larger tires can be fitted for enhanced stability in inclement weather or on challenging roads. Ground clearance increases to an impressive 10.7 inches, so you can adventure further wherever the road takes you.
The capability to go further with the confidence you need to get back.
"Safety, comfort and performance—it’s a well-rounded package that is really quite impressive."
Nate TennisRally Driver and Lead Instructor
DirtFish Rally School
Vehicle Fitment
| Make | Model | Year |
|---|---|---|
| Subaru | Outback | 2015 |
| Subaru | Outback | 2016 |
| Subaru | Outback | 2017 |
| Subaru | Outback | 2018 |
| Subaru | Outback | 2019 |
What Our Customers Say About Spec-C
"Its definitely a bit firmer unloaded, but the ride is still nice enough that no complaints from my girlfriend, or elderly mother, but when you hit the rough stuff and or loaded down, it shines! I am very impressed with how well it soaks up the huge holes and bumps vs a spacer lift."
Specifications
- Estimated Lift: 2"
- Estimated Ground Clearance: 10.7"
- Coilover suspension provides approximately 2-inches of front and rear lift
- **NOTE** Outbacks with the 3.6L 6cyl engine will sit slightly lower in the front due to the additional 259 lbs of engine weight. We recommend Spec-C Heavy load front coilovers due to this.
- Extended travel twin-tube struts improve control and comfort
- Ride height will vary based on additional accessory load
- Low nitrogen charge for a smoother response
- Vehicle specific valving
This Kit Includes:
- Front and Rear Ironman 4x4 ATS coilovers (pre-built struts and springs for front and rear)
- Subframe spacer kit
- All mounting hardware for installation included
NOTES:
- May not be compatible with trailer hitches so double check your clearances ahead of install
- The Spec-C heavy-load springs are designed for vehicles that are constantly loaded with a minimum additional weight of 660lbs. Please be advised if you don’t keep the additional required weight in your vehicle, the ride will feel stiff. The Spec-C suspension is a great option if your vehicle is heavily loaded at all times.
Additional Specifications:
| ATS Medium Load | |
| Front Strut Extended: | 615mm |
| Front Strut Compressed: | 423mm |
| Rear Strut Extended: | 535mm |
| Rear Strut Compressed: | 351mm |
| Spring Rate Front: | 180(lbf/in) |
| Spring Rate Rear: | 200(lbf/in) |
| ATS Spec-C Heavy Load | |
| Front Strut Extended: | 615mm |
| Front Strut Compressed: | 423mm |
| Rear Strut Extended: | 535mm |
| Rear Strut Compressed: | 351mm |
| Spring Rate Front: | 190(lbf/in) |
| Spring Rate Rear: | 270(lbf/in) |
Installation
- Bolt-on system (no cutting or welding necessary)
- May not be compatible with trailer hitches so double check your clearances ahead of install
View Instruction Sheet Installation Video:
- Make:
- Subaru
- Model:
- Outback
- Model:
- Outback 3.6R
- Year:
- 2015
- Year:
- 2016
- Year:
- 2017
- Year:
- 2018
- Year:
- 2019
- Suspension Type:
- All Terrain Suspension
- ATS Suspension Kit:
- ATS (0-440LBS Additional Load)
