Build Package Suited for 2018-2020 Jeep Wrangler JL | Suspension Lift Kit | Full Length Front Bumper | Rear Bumper | Rock Rails

Build up your Jeep Wrangler JL with this convenient bundle of gear to get your adventure started.  We put together a great selection of products to set up your vehicle for 4WD touring while still maintaining its daily drivability.

All aspects were considered from driving comfort and performance to armor protection and vehicle recovery.

Just add fuel.

Suspension System

Ironman 4x4 suspension systems suited for the Jeep Wrangler JL combines upgraded on-road dynamics, dramatically reducing body roll and increasing stability with excellent off-road touring performance. Choose between our Foam Cell Pro shocks or our Nitro Gas shocks

Our Foam Cell Pro shock absorbers feature a tough, military spec, big bore 3" twin-tube shock, the largest, strongest shock on the market; they are nearly indestructible, carry no internal parts which can jam, require little to no service, and are rebuildable.

Our Nitro Gas shock absorbers make a big improvement in ride quality, stability, strength, and handling over the stock suspension. These are perfect for outdoor adventures into the backcountry and back home again without breaking the bank.

Raid Series Armor

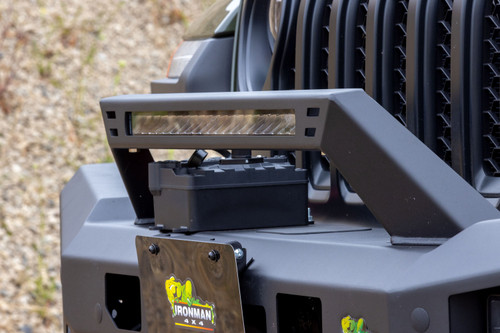

The Ironman 4x4 Raid series front bumper uses our two-stage attachment design, connecting the winch cradle directly to the chassis for the most robust possible recovery platform. Alternative one-piece bumpers pull from the bumper shell, causing twisting and potential deformation to the steel bumper and vehicle. In addition, the frame-mounted rated recovery points give you a concrete foundation for recovery or towing.

Additional Features:

• Two-part front bumper design with a winch cradle mounted directly to the chassis for the strongest and safest possible winching platform for the harshest recovery situations
• Bolt-on, frame-mounted recovery points included with the bumper
• Integrated crumple zones transfer energy away from vehicle occupants
• ADR 69, 73 approved (Full Frontal and Offset Impact Occupant Protection)
• Tested to the highest standards in compliance with Australian Design Regulation, SRS Airbag tested and certified
• Winch compatible with clutch handle access and line visibility
• Standard 10” x 4.5” winch mount footprint
• Don’t want to run a winch yet? Raid comes with a winch “black out plate” to maintain a clean seamless look.
• Pickled, cold-rolled steel manufacturing for impurity free template during assembly
• Ultra-durable AKZO NOBEL Black Powder Coat and pre-treated steel for rust resistance
• 360° Robotic welding for consistently precise welds resulting in peak quality and unequaled strength
• Bright Saber-X LED Single Row Light Bar - 20"
• Increased approach and departure angles provide maximum clearance for obstacles
• Compatible with factory parking sensors

Specifications

Suspension Kit:

• Estimated Lift Height: 1.5"-2"

Full Length Front Bumper:

• Full Length Front Bumper Approximate Weight: 101lbs

Rear Bumper:

• Rear Bumper Approximate Weight: 52lbs

Rock Rails/ Side Steps:

• Rock Rails / Side Steps Approximate Weight: 73lbs
• Outer Diameter for Tubing: 2" (51mm)
• Side Step Angle: 23°

Fitment Details:

• Requires stock skid plate to be modified for proper front bumper fitment

This Kit Includes:

• Suspension Kit
• Front Coil Springs (one set)
• Rear Coil Springs (one set)
• Shocks (depending on selection will include Foam Cell Pro shocks or Nitro Gas shocks):

• Foam Cell Pro Shocks:
• 45851FE - Front Shock Absorber - Foam Cell Pro (2)
• 45852FE - Rear Shock Absorber - Foam Cell Pro (2)


• Nitro Gas Shocks:
• 12851GR - Front Shock Absorber - Nitro Gas (2)
• 12852GR - Rear Shock Absorber - Nitro Gas (2)


• 3544 - Steering Damper (1)


• Raid Full Length Steel Front Bumper
• Bolt-On installation with mounting hardware
• 20" Saber-X Single Row Slim Light bar


• Front Bumper LED Lighting (depending on selection will include one of the following):
• (2) 3.2" 40W Cube Spot Beam LED Lights - Clear
• (2) 3.2" 40W Cube Spot Beam LED Lights - Amber
• (2) 3.2" 40W Cube Flood Beam LED Lights - Clear
• (2) 3.2" 40W Cube Flood Beam LED Lights - Amber

• Raid Rear Steel Bumper
• Bolt-On installation with mounting hardware

• Rear Bumper LED Lighting (depending on selection will include one of the following):
• (2) 2.8" 20W Cube Spot Beam LED Lights - Clear
• (2) 2.8" 20W Cube Spot Beam LED Lights - Amber
• (2) 2.8" 20W Cube Flood Beam LED Lights - Clear
• (2) 2.8" 20W Cube Flood Beam LED Lights - Amber
• (2) 2.8" 20W Cube Flood Beam LED Lights - Red

• Raid Series Rock Rails / Side Steps
• Bolt-On installation with mounting hardware

Note: Does not include wiring harness.  Recommended wiring harness setup:

• For front bumper light bar: 1x IWHL001
• For front bumper cube lights: 1x IWHL002
• Front bumper cube lights can also be wired into factory fog lights


• For rear bumper cube lights: 1x IWHL002

Warranty

Installation

Raid Series Full Length Front Bumper Line Drawings

Raid Series Full Length Front Bumper Install Guide

Raid Series Rear Bumper Line Drawings

Raid Series Rear Bumper Install Guide

Suspension Kit Install Video:

Raid Series Rear Bumper Install Video:

Raid Series Rock Rails / Side Steps Install Video:

Rock Rails Full Length Front Bumper Install Video:
