LIGHT UP YOUR ADVENTURE: Ditch lights are perfect for any adventure. Ironman4x4's light selection includes spot beams and flood beams that come in a clear or amber lens. With lumens up to 6540lm, these compact lights are powerful and provide more than enough light coverage for off-road trails or work sites. Using the latest technology, featuring Osram LED’s these lights are brighter and more efficient than ever before, increasing visibility and reaction time - keeping you and your passengers safer.
RUGGED DESIGN: Durable construction and compact design makes for a perfect off-road light. Our lighting lineup features IP67 rating for complete dirt, sand, and water resistance. Whatever trail your on, these lights can take a beating - we guarantee with a 1-year warranty.
INCLUDED LIGHT MOUNTS: This kit comes with everything to mount, wire up, and secure ditch lights to your vehicle.
DESIGNED FOR THE JEEP GLADIATOR JT: The included light brackets do not require any drilling or trimming and bolt straight on to the hood hinge. The included lights and wiring harness are designed to be universal and can work with a variety a vehicles.
Vehicle Fitment
Make | Model | Year |
---|---|---|
Jeep | Gladiator JT | 2020 |
Jeep | Gladiator JT | 2021 |
Jeep | Gladiator JT | 2022 |
Jeep | Gladiator JT | 2023 |
Specifications
5" LED Lights w/ Side Shooters | 3.2" 40W LED Cube Lights Flood Beam - Amber | 3.2" 40W LED Cube Lights Flood Beam - Clear | 3.2" 40W LED Cube Lights Spot Beam - Amber | 3.2" 40W LED Cube Lights Spot Beam - Clear | ||
Beam: | Flood | Spot | Flood | Flood | Spot | Spot |
Beam Color: | Clear | Clear | Amber | Clear | Amber | Clear |
LEDs: | 9x2W / 5x2W | 9x5W / 8x2W | 4 | 4 | 4 | 4 |
Watts: | 30W | 61W | 40W | 40W | 40W | 40W |
Lumens: | 2850lm | 6540lm | 4800lm | 4800lm | 4800lm | 4800lm |
Lux @ 33FT (10M): | 88lx | 1166lx | 25lx | 28lx | 662lx | 736lx |
1 Lux: | 308FT (94M) | 1119FT (341M) | 164FT (50M) | 174FT (53M) | 843FT (257M) | 889FT (271M) |
Dimensions: | 3.8" x 3.1" x 2.9" | 5.4" x 4.3" x 3.5" | 3.2" x 3.1" x 3" | 3.2" x 3.1" x 3" | 3.2" x 3.1" x 3" | 3.2" x 3.1" x 3" |
Color: | 6000 K | 6000 K | 3500 K | 6000 K | 3500 K | 6000 K |
Operating Voltage: | 12 - 24VDC | 12V - 24V | 12 - 24 VDC | 12 - 24 VDC | 12 - 24 VDC | 12 - 24 VDC |
Amp Draw (12/24 VDC): | 1.69A / 0.84A | 4.171A / 2.05A | 3.39 A / 1.62 A | 3.39 A / 1.62 A | 3.39 A / 1.62 A | 3.39 A / 1.62 A |
Chips: | 9x2W / 5x2W | 9x5W / 8x2W | OSRAM 10W x 4 | OSRAM 10W x 4 | OSRAM 10W x 4 | OSRAM 10W x 4 |
Mounting Brackets:
-
No Drilling or Trimming Required
-
Bolt on Design
-
Made from Stainless Steel
-
Low Profile Clean Look
-
Powder coated Black

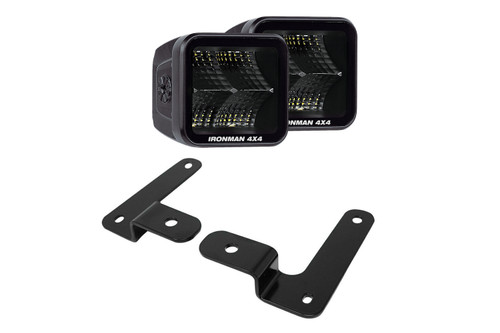

This Kit Includes:
- Low Profile Ditch Light Mounts Suited for 2020+ Jeep Gladiator JT (1 Pair)
- Wiring harness
- Depending on selection includes one of the following:
