Foam Cell Pro Suspension Kit Suited for Toyota 200 Series Land Cruiser - Stage 2

The Ironman 4x4 Foam Cell Pro Stage 2 Lift Kit suited for the Toyota 200 Series Land Cruiser combines upgraded on-road dynamics, dramatically reducing body roll and increasing stability with excellent off-road touring performance.

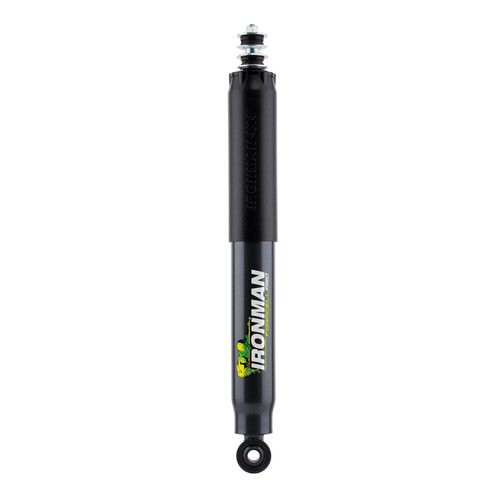

The Foam cell pro shock is filled with premium grade FUCHS oil and our foam cell sleeve technology. The foam cell sleeve, impregnated with millions of tiny bubbles of nitrogen, maximizes oil and thermal carrying capacity and eliminates high internal pressures found on regular nitro gas-shock absorbers.

All of these features combined deliver an incredibly reliable, fit for purpose shock absorber that has stood the test of time in the Australian outback and military theaters around the world.

The Stage 2 Kit includes our drop-forged 200 Series Land Cruiser upper control arms (UCA's), providing additional strength and 4 degrees of caster correction. Returning the vehicle suspension geometry to the manufacturer's specifications and again, requiring next to no servicing. Just set it, and forget it.

Pro-Forge UCAs are made from lightweight 6082 T6 aluminum with a hardened zinc coating and sealed, high articulation, easily replaceable OEM style ball joint and bushings.

This 200 Series Land Cruiser 3-inch lift kit comes complete with all the necessary suspension parts to deliver a lifted 200 Series Land Cruiser with more ground clearance, fit larger tires and increase payload capacity for additional vehicle accessories or equipment. The lift kit is fully compatible with KDSS.

Specifications

• Estimated Lift: 0-3"
• Package Details: Kit

This Kit Includes:

• Front Coil Springs - (one set)
• Rear Coil Springs - (one set)
• 45720FE- Front Coil Over - Foam Cell Pro (2)
• 45796FE- Rear Shock Absorber - Foam Cell Pro (2)
• UCA056FA- Pro Forge Upper Control Arms (one pair)

The Ironman 4x4 Foam Cell Pro Features Include:

• 2.8" outer body diameter
• Chrome hardened piston rod
• 1/8" exterior tube wall thickness
• 360 degree welded mounts
• Rebuildable design
• Threaded height adjustable strut spring seat
• Integrated bump stop (on applicable models)
• Single piece solid mounting base
• Solid one piece eye ring
• Twin Tube Construction
• Foam Cell Design

Installation

 View KDSS Instruction Sheet

 **NOTE** The TOY063 coil springs are utilized for several vehicles. The taller spring is always installed on the gas tank side of the vehicle.

  200 Series Land Cruiser, please install the Coil Labeled "TOY063 D/S" on the PASSENGER / RIGHT side (gas tank side) of your vehicle.
