All Ironman coil springs are designed to provide a safe, comfortable ride while also providing additional ground clearance.

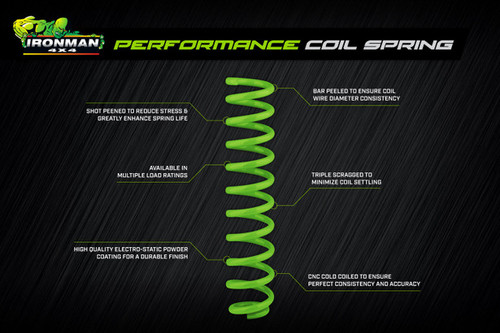

Ironman 4x4 coil springs are CNC cold wound and bar peeled for maximum reliability and consistency, every coil spring is ‘shot-blasted’ to ensure long life, preset to its solid height and load tested to avoid spring sag.
All springs are electro-static powder-coated for a gleaming appearance. Available in raised height and perfectly matched to Ironman 4x4 Shock Absorbers.
Specifications
- Quantity Required 1
- Estimated Lift 1.5"
- Additional Load 0-440LBS
- Package Details Pair
- Additional Notes In some cases a driveline vibration may occur after lift. A gearbox crossmember spacer may be required.
| JEEP008B | |
| Material Diameter: | 16mm |
| Free Height: | 345/335mm |
| End I/D: | 72mm |
| Spring Rate (N/mm): | 35 (N/mm) |
| Spring Rate (lb/in): | 200 (lb/in) |
Installation
View Coil Spring Instructions- Make:
- Jeep
- Model:
- Wrangler TJ
- Year:
- 1996
- Year:
- 1997
- Year:
- 1998
- Year:
- 1999
- Year:
- 2000
- Year:
- 2001
- Year:
- 2002
- Year:
- 2003
- Year:
- 2004
- Year:
- 2005
- Year:
- 2006
- Year:
- 2007
- Rear Springs:
- Medium Load
