The Toyota RAV4 Build Package makes your RAV4 off-road ready. Our build package includes a full suspension lift kit, front bumper guard with skid plate, and LED lights for increased visibility.

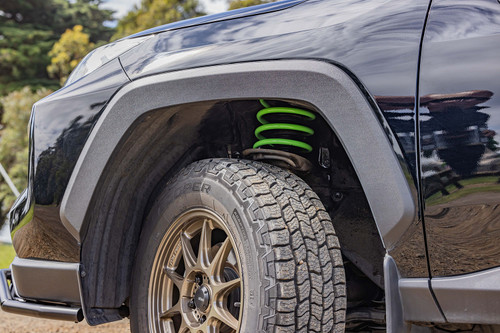

ATS SUSPENSION LIFT KIT
IMPROVED RIDE QUALITY: The All Terrain Systems (ATS) Suspension Lift Kit for the 2019+ Toyota RAV4 is a complete suspension system with performance coils for greater stability and improved driving dynamics without compromising safety and comfort.
LIFT YOUR RAV4: With 2 inches of lift, our ATS suspension lift kit can help fit larger tires for better stability in inclement weather or on challenging roads/trails.
EXTENDED TRAVEL SHOCKS: The ATS shock is engineered with extended travel twin-tube gas struts, derived from our military-grade suspension.
INCREASED GROUND CLEARANCE: Ground clearance increases to 10 inches making the RAV4 more off-road capable and better equipped to tackle challenging trails. This gives you the capability to go further and the confidence to get back.
SAFE EVERYDAY DRIVING: Drive confidently in a lifted RAV4-lifting your vehicle provides better visibility and ground clearance to safely see and avoid damage from obstacles on and off-road.
4 YEAR/UNLIMITED MILE WARRANTY: We are so confident in our ATS suspension we provide a 4 year/unlimited mile warranty.
"Safety, comfort and performance—it’s a well-rounded package that is really quite impressive."
Nate TennisRally Driver and Lead Instructor
DirtFish Rally School

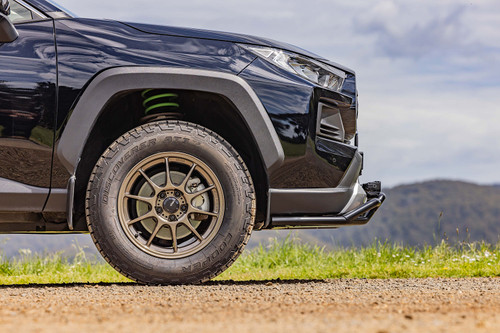

FRONT BUMPER GUARD

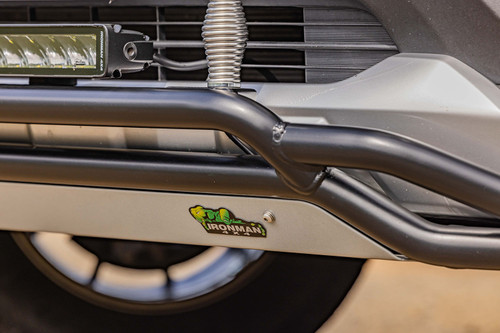

STRONG, DURABLE PROTECTION: Our class-leading front bumper guard offers the ultimate protection not just for the leading edges around the front of the RAV4 but also against the radiator and other vital engine components with the integrated skid plate.
FRONT BUMPER GUARD AND SKID PLATE KIT: Included with the front bumper guard is a skid plate kit consisting of a center plate and side plates, offering extra protection on and off-road.
DESIGNED FOR THE RAV4: Our front bumper guard and skid plate kit is specifically designed for the 2019+ RAV4. The stylish tube design matches the front contours and styling of the RAV4 providing and clean modern look.

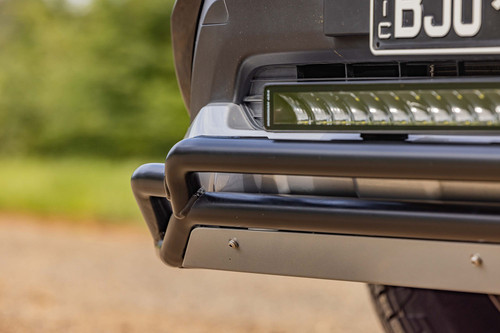

VERSATILE ACCESSORY MOUNTS: The ATS front bumper guard offers the option to add an auxiliary LED light bar or up to 4 LED driving lights with the included 4 light tab mounts. This gives you better visibility when driving in the backcountry at night.
3 YEAR WARRANTY: We are so confident in our RAV4 armor we provide a 3 year warranty.
AUXILIARY LIGHTS
LIGHT UP YOUR ADVENTURE: Ironman 4x4’s LED Light Bars or Auxiliary Lights allow you to see further and draw less power, with state of the art, high intensity CREE LED's for maximum light spread.
INCREASED PERFORMANCE: Upgraded aluminum extrusion housing has been designed to keep the lights cool, ensuring the greatest LED efficiency.
UNIVERSAL MOUNTING: Rear and side end mounting solutions provide various securing options to easily attach to the RAV4 Front Bumper Guard.
DURABLE CONSTRUCTION: Designed for all off-road conditions with industry leading IP67 and IP69K water and dust proof ratings.
VEHICLE FITMENT
| Make | Model | Year |
|---|---|---|
| Toyota | RAV4 | 2019 |
| Toyota | RAV4 | 2020 |
| Toyota | RAV4 | 2021 |
| Toyota | RAV4 | 2022 |
| Toyota | RAV4 | 2023 |
| Toyota | RAV4 | 2024 |
| Compatible with all trim levels and hybrid models | ||
RECOMMENDED WHEEL/TIRE FITMENT
| Wheel | Tire | Modifications |
|---|---|---|
| 17x7.7" +35 | 245/65/17 | No modifications needed |
| 17x8" +38 | 245/70/17 | Minor modifications needed |
| 17x8" +35 | 255/65/17 | Inner fender plastic trimming is required |
Specifications
| ATS SUSPENSION LIFT KIT | |
| Estimated lift height: | 2" |
| Estimated ground clearance: | 10" |
| Extended travel twin-tube struts improve control and comfort | |
| Ride height will vary based on additional accessory load | |
| Low nitrogen charge for a smoother response | |
| Toyota RAV4 specific shock valving | |
| FRONT BUMPER GUARD | |
| Weight: | 57 lbs (26kg) |
| Dimensions (WxHxL): | 22.8" x 6.8" x 68.1" (580mm x 172mm x 1730mm) |
| Tube Size: | OD 1.5" (38.1mm) |
| Tube Wall Thickness: | 0.10" (2.6mm) |
| Skid Plate Thickness (center and side plates): | 0.08" (2mm) |

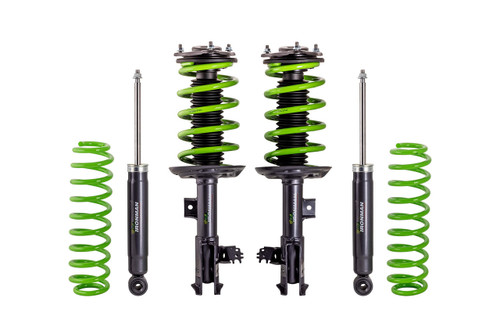

This Kit Includes:
- Front ATS coilovers
- 1x Pre-built strut and spring for front driver side
- 1x Pre-built strut and spring for front passenger side
- 2x Rear Shock Absorbers
- Rear Coil Springs (1 pair)
- Front bumper guard with 4 light tab mounts
- Skid plate:
- Center plate
- 2x side plates
- Depending on light selection can include one of the following:
- 2x 7" Meteor Driving Lights With Daytime Running Light
- 2x 7" Blast Phase II Spot LED Driving Lights
- 2x 7" Blast Phase II Combo LED Driving Lights
- Bright Saber LED Single Row Light Bar - 20"
- Bright Saber LED Single Row Light Bar - 32"
- All mounting hardware for installation
NOTE:
Wiring harness is not included
Additional ATS Lift Kit Specifications:
| ATS Comfort Load | |
| Front Strut Extended: | 582mm |
| Front Strut Compressed: | 385mm |
| Rear Strut Extended: | 520mm |
| Rear Strut Compressed: | 340mm |
| Spring Rate Front: | 171(lbf/in) |
| Spring Rate Rear: | 548(lbf/in) |
Installation
- ATS Suspension Lift Kit is a bolt-on system (no cutting or welding necessary)
- Front Bumper Guard requires some cutting/drilling
ATS Suspension Lift Kit Installation Video:
Front Bumper Guard Installation Video:
